Trench MOS

Part Number	Download	Circuit	Status	Type	Process	ESD Yes/No	VDS V	VGS V	ID A	VGS(TH) V	RDS(mΩ)@VGS 10V Typ	RDS(mΩ)@VGS 10V Max	RDS(mΩ)@VGS 4.5V Typ	RDS(mΩ)@VGS 4.5V Max	Package
Reset Reset All			Active OK Reset	Dual-N Dual-P N/P-ch Single-N Single-P OK Reset	Trench OK Reset	No Yes OK Reset	OK Reset	±10 ±12 ±20 ±25 ±30 ±6 ±7 ±8 OK Reset	OK Reset	-0.35~-1.1 -0.3~-1 -0.45~-1.2 -0.4~-0.9 -0.4~-1 -0.4~-1.0 -0.4~-1.3 -0.5~-0.9 -0.5~-1 -0.5~-1.2 -0.5~-1.5 -0.6~-1.4 -0.6~-1.5 -0.7 -0.7~-1.3 -0.9~-2 -1.0~-2.5 -1.0~-3.0 -1.1~-2.2 -1.2~-2.2 -1.5 -1.5~-2.5 -1.5~-3 -1.5~-3.5 -1~-2 -1~-2.2 -1~-2.5 -1~-3 -1～-2.5 -1～-3 -2~-3 -2~-4 0.35~1.1 0.35~1.4 0.35~2.5 0.3~1.1 0.45~1 0.45~1.1 0.45~1.2 0.4~1 0.4~1.0 0.4~1.1 0.4~1.2 0.4~1.4 0.4~1.5 0.5~0.9 0.5~1 0.5~1.1 0.5~1.2 0.5~1.3 0.5~1.5 0.5~2 0.5～2 0.65~1.2 0.65~1.5 0.6~1 0.6~1.2 0.6~1.4 0.6~1.5 0.7~1.4 0.7~1.5 0.7~3 0.8~1.5 0.8~3 0.9~1.5 1 1.0~2.5 1.2~2.2 1.2~2.4 1.2~2.5 1.2~2.8 1.2～3 1.3~2.2 1.3~2.3 1.3~2.5 1.5 1.5~2.5 1~2 1~2.2 1~2.5 1~2.8 1~3 1～2.2 1～2.5 1～3 2.0~4.0 2~4 OK Reset	OK Reset	OK Reset	OK Reset	OK Reset	CSPB1111-4 CSPB1313-4 CSPB1515-4 CSPB1717-4 CSPB1912-6 CSPB2213-6 CSPB2217-6 CSPC2019-10 CSPC2115-10 CSPC2624-10 CSPC3015-10 CSPC3028-14 DFN1006-3L DFN1006-3L-A DFNWB2x2-6L DFNWB2x3-6L DFNWB3x3-8L DFNWB5x2-6L PDFNWB3.3x3.3-8L PDFNWB3.3x3.3-8L-B PDFNWB5x6-8L PDFNWB5x6-8L-A SOP8 SOT-223 SOT-23 SOT-23-3L SOT-23-6L SOT-323 SOT-363 SOT-523 SOT-563 SOT-723 SOT-89-3L TO-220-3L-C TO-220F TO-251 TO-252-2L TO-92 TSSOP8 WBFBP-03E OK Reset

CJAA7002KL			Active	Single-N	Trench	Yes	60	±20	0.34	1~2.5	-	3500	-	4000	WBFBP-03E
CJAA3144K			Active	Single-N	Trench	Yes	30	±12	0.6	0.5~1.5	-	-	290	500	WBFBP-03E
CJ8810A			Active	Single-N	Trench	No	20	±10	7.2	0.4~1.0	13	17	13.6	17.7	SOT-23
CJ3134KA			Active	Single-N	Trench	No	20	±10	1.7	0.4~1.1	-	-	83	110	SOT-723
CJE3134KA			Active	Single-N	Trench	No	20	±10	1.3	0.4~1.1	-	-	108	150	SOT-523
CJ3134KWA			Active	Single-N	Trench	No	20	±10	1.38	0.4~1.1	-	-	111	150	SOT-323
CJE3139KA			Active	Single-P	Trench	No	-20	±10	-0.78	-0.35~-1.1	-	-	312	450	SOT-523
CJAC40SN10H			Active	Single-N	Trench	No	100	±20	40	2.0~4.0	14	17	-	-	PDFNWB5x6-8L
CJAC055P10A			Active	Single-P	Trench	No	-100	±20	-30	-1.5~-2.5	46	55	51	70	PDFNWB5x6-8L
CJ3139KWA			Active	Single-P	Trench	No	-20	±10	-0.83	-0.35~-1.1	-	-	312	450	SOT-323
CJAC5R6SN03AL			Active	Single-N	Trench	No	30	±20	40	1.2~2.4	4.7	5.6	7.5	10	PDFNWB5x6-8L
CJAC1R6SN03A			Active	Single-N	Trench	No	30	±20	240	1.2~2.2	1.4	1.7	2	2.8	PDFNWB5x6-8L
CJAC1R2SN03A			Active	Single-N	Trench	No	30	±20	300	1.3~2.2	0.9	2.2	1.4	2	PDFNWB5x6-8L
CJAB6R0SN04AL			Active	Single-N	Trench	No	40	±20	90	1.5~2.5	4.1	5.5	7.3	10	PDFNWB3.3x3.3-8L

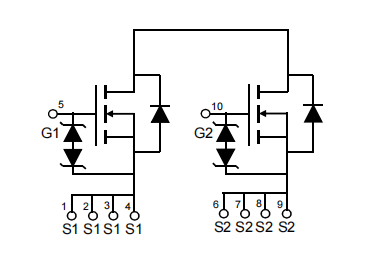

CJ25223SP-B			Active	Dual-N	Trench	Yes	12	±8	13.5	0.35~1.4	-	-	2.3	2.9	CSPC2115-10
CJA03N06			Active	Single-N	Trench	No	60	±20	3	1.2~2.5	38	48	40	50	SOT-89-3L
BSS84K			Active	Single-P	Trench	No	-50	±20	-0.13	-0.9~-2	2300	6000	-	-	SOT-23
CJQ023E03A			Active	Dual-P	Trench	No	-30	±20	-8.5	-1.1~-2.2	15	20	20	28	SOP8
CJQ4407A			Active	Single-P	Trench	No	-30	±20	-11	-1.2~-2.2	10.5	14	11.5	16	SOP8
CJQ4435A			Active	Single-P	Trench	No	-30	±20	-9.9	-1.1~-2.2	13	17	17	24	SOP8

«
